Diameter: 2.5, 3.2, 4.0, 5.0mm (3/32”, 1/8”, 5/32”, 3/16”)
Packing: 5kg each box

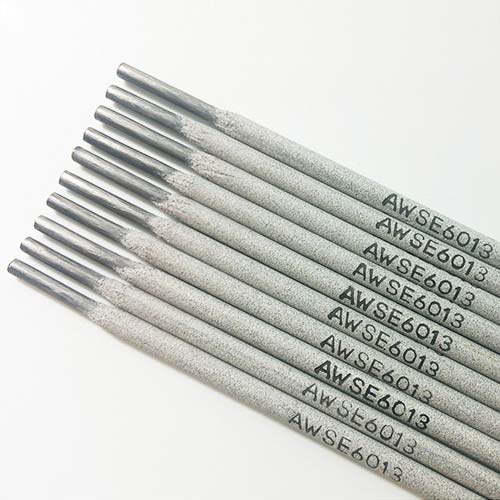

E6013 is a kind of carbon steel welding electrode coated with rutile. It is permitted for all position welding. AC/DC both avaliable. It has the character of excellent welding performace with smooth arc, low spatter level, effortless slag removal ability with optimal bead apperace.
Used for welding of low carbon steel structure, thin plates and small piece and cosmetic welding that requires optimal bead apperance and smooth surface
Chemical Composition (%)
| C | Mn | Si | P | S | Ni | Cr | Mo | |
| Range | ≤0.10 | 0.32-0.55 | ≤0.30 | ≤0.035 | ≤0.030 | ≤0.30 | ≤0.20 | ≤0.30 |
| Test | 0.075 | 0.37 | 0.22 | 0.016 | 0.024 | 0.050 | 0.025 | 0.007 |
Melting metal mechanical performance
| Tensile strength Rm (Mpa) | Yield strength Rp0.2 (Mpa) | Elongation ratio (%) | AKV(0℃) | |||||||
| Range | ≥430 | ≥355 | ≥22 | ≥47 | ||||||
| Test | 495 | 385 | 28 | 76 | ||||||
