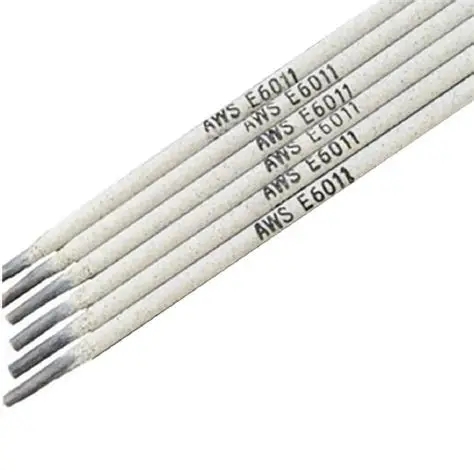

E6011 welding electrode

E6011 welding electrode

Diameter:  3.2, 4.0, 5.0mm (1/8”, 5/32”, 3/16”)

Packing: 5kg each box

INTRODUCTION:

E6011 is designed for vertical down welding. It is used for all position welding. AC/DC both can be applied. the arc blow force is large. It can shape double-side beam by single side welding with fast melting speed, clear molten pool, effortless slag removal ability and strong porosity resistance.

PURPOSE:

The product can be used for girth butt joint of various carbon steel pipes and vertical down welding of general carbon steel structures.

Categories: ,

Chemical Composition (%)

C Mn Si P S Ni Cr Mo
Test 0.12 0.38 0.18 0.002 0.014 0.083 0.035 0.005

Melting metal mechanical performance

Tensile strength Rm (Mpa) Yield strength Rp0.2 (Mpa) Elongation ratio (%) AKV(-30℃)
Test 496 405 29 50

Reference Current(AC, DC-)

Diameter 3.2mm 4.0mm 5.0mm
Amperage 60~80 90~110 140~160

Precautions:

  1. No baking is required.
  2. Impurities such as rust, oil stain and moisture must be cleared off the work piece before welding.
  3. While welding, the operating current should not be too large, and the welding electrode should not swing greatly.

Welding position: OH, F, H, HF, VD, VU
