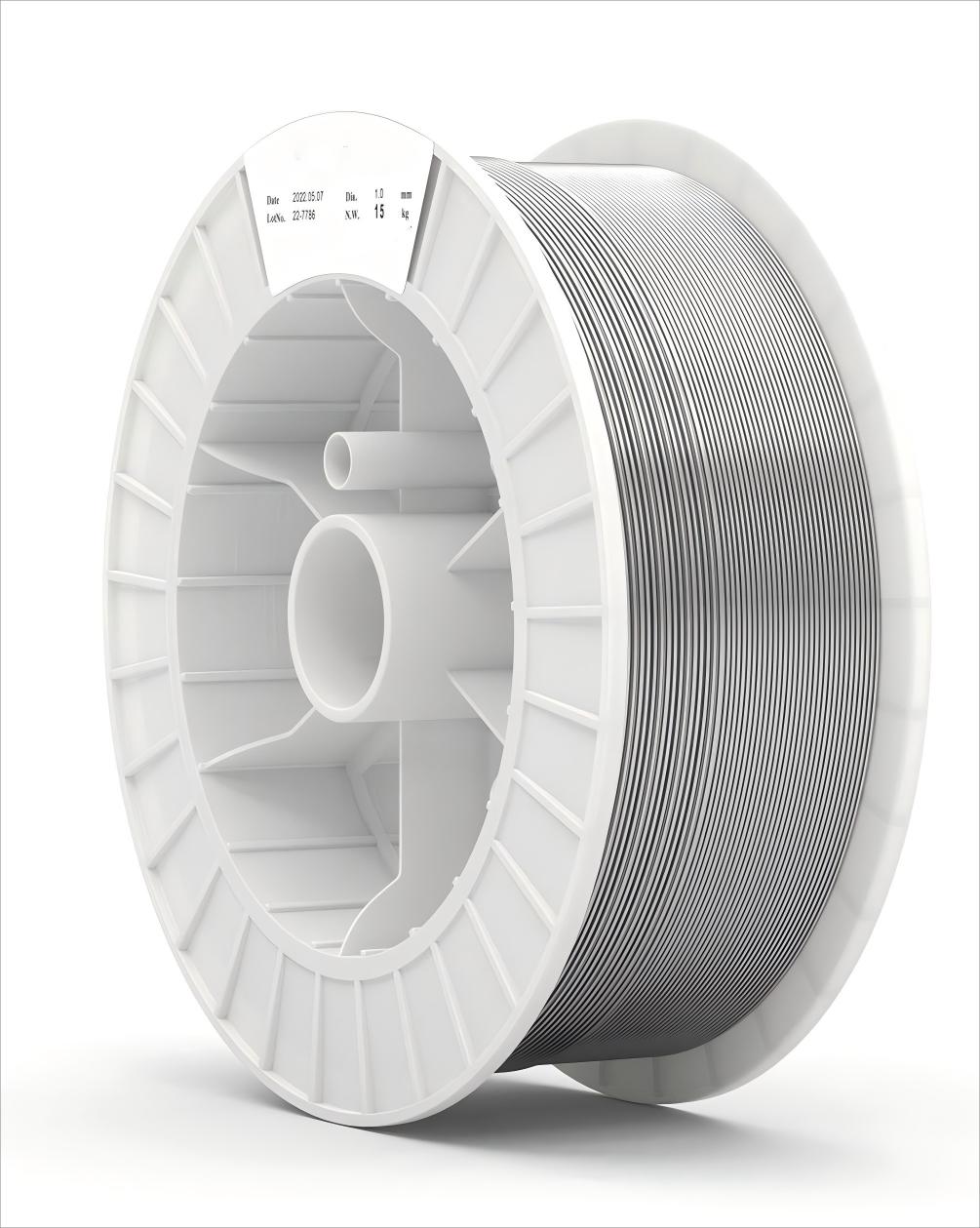

Chemical components of welding wire (%)
| C | Mn | Si | Cr | Ni | Mo | P | S | Cu | |
| Range | ≤0.08 | 1.00-2.50 | 0.30~0.65 | 18.00~20.00 | 11.00~14.00 | 2.00~3.00 | ≤0.030 | ≤0.030 | ≤0.75 |
| Test | 0.046 | 1.78 | 0.45 | 19.78 | 12.95 | 2.50 | 0.012 | 0.010 | 0.26 |
Mechanical properties of deposited metal:
| Tensile strength Rm (Mpa) | Elongation ratio (%) | Shielding gas | ||||||
| Test | 585 | 38 | 98%Ar+2%O₂ | |||||
Reference current (DC+)
| Diameter (mm) | φ0.8 | φ1.0 | φ1.2 | |||
| Welding Current (A) | 70~150 | 100~200 | 140~220 | |||
Precautions:
- Shielding gas: pay attention to the purity of shielding gas, it is recommended to keep the mixed ratio at Ar + 1~3% O₂.
- Gas flow: 20~25L/min.
- Dry extension length: 15~25min.
- The rust layer, moisture, oil stain, dust, etc on the welding part shall be clearly removed.
Welding Position: H, OH, HF, F, VD, VU
